Application : These cables are mainly used in submersible pump connections. The outer sheath is made with special formulation which ensures that the cable resists extreme environmental conditions, water, oil and grease.
Conductor : The conductors are drawn from bright electrolytic grade copper and bunched together as per relevant class of IS : 8130.
Core colour : Red, Yellow, Blue.
Insulation : Bunched conductors are insulated with specially developed RoHS PVC which has high Insulation and volume resistivity.
Sheathing : Best in class soft PVC is used for sheathing of the cable which ensures high flexibility.
Marking : Sequential meter marking with generic marking “Bintex” at one meter interval.

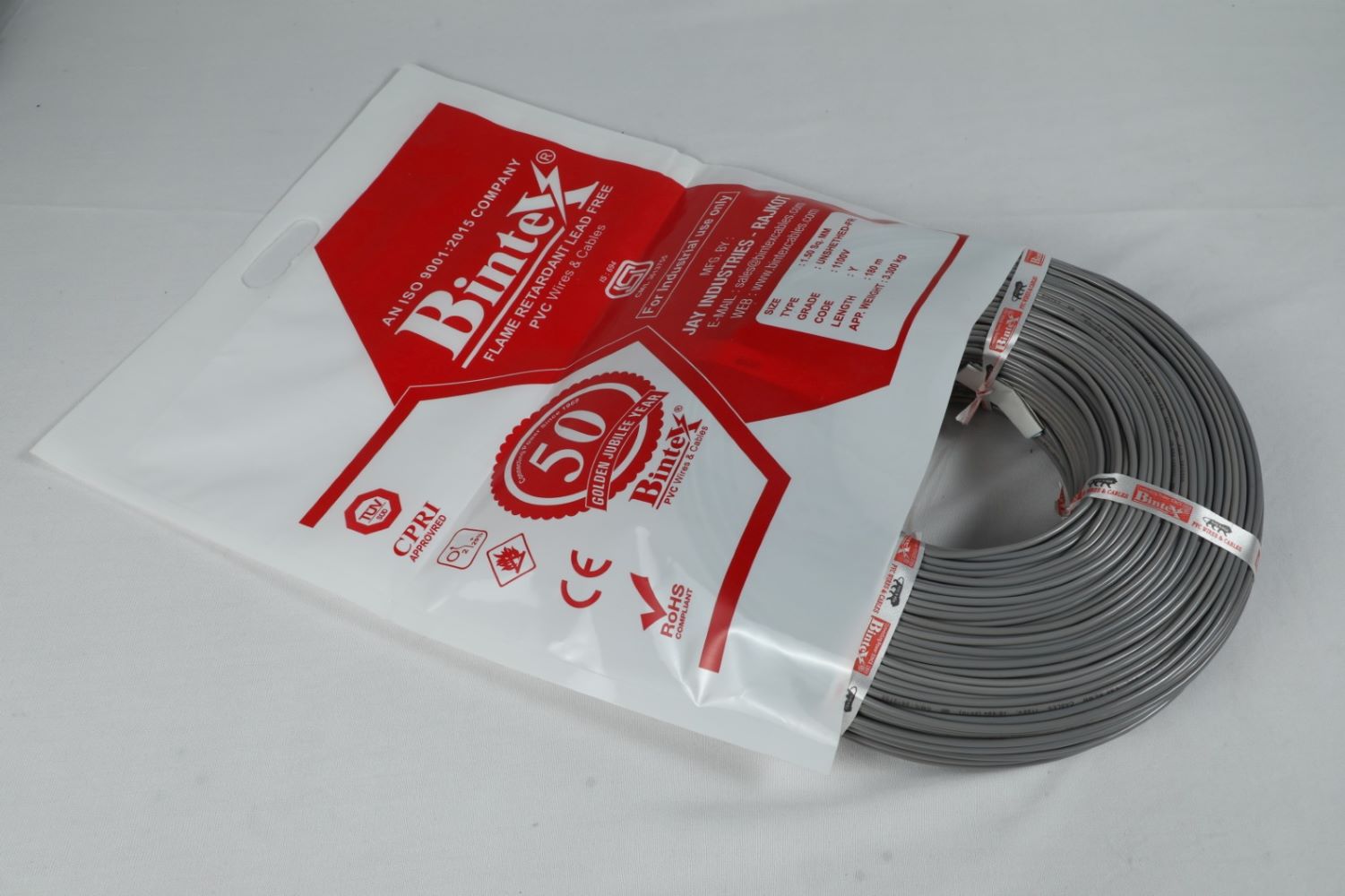

Packing : Available in standard packing of 100 mtr. Drum packing 500 mtr and above available on request.
SIZE DIMENSIONS AND RATINGS CHART FOR 3 CORE FLAT SUBMERSIBLE CABLES
| CONDUCTOR CONSTRUCTION | CONDUCTOR RESISTANCE AT 20C° | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | APPROX. OVERALL DIMENTIONS (WXH) (+/- 0.5) | CURRENT CARRYING CAPACITY | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CROSS SECTIONAL AREA | NO. OF STRANDS/ MAX. DIA. OF STRANDS | |||||||||||||||||||||||||||||||
| Sq. mm | Nos. / mm | (ohm/km) / Max | mm | mm | mm | Amp. | ||||||||||||||||||||||||||
| 3C x 1.00 | 32 / 0.200 | 19.500 | 0.60 | 0.90 | 11.0 x 5.40 | 12 | ||||||||||||||||||||||||||
| 3C x 1.50 | 30 / 0.250 | 13.300 | 0.60 | 0.90 | 12.0 x 5.60 | 18 | ||||||||||||||||||||||||||
| 3C x 2.50 | 50 / 0.250 | 7.980 | 0.70 | 1.00 | 13.0 x 6.20 | 24 | ||||||||||||||||||||||||||
| 3C x 4.00 | 56 / 0.300 | 4.950 | 0.80 | 1.00 | 15.3 x 7.10 | 28 | ||||||||||||||||||||||||||
| 3C x 6.00 | 84 / 0.300 | 3.300 | 0.80 | 1.10 | 19.2 x 8.40 | 36 | ||||||||||||||||||||||||||
| 3C x 10.00 | 140 / 0.300 | 1.910 | 1.00 | 1.40 | 24.2 x 10.40 | 48 | ||||||||||||||||||||||||||
| 3C x 16.00 | 126/ 0.400 | 1.210 | 1.00 | 1.40 | 29.0 x 12.40 | 64 | ||||||||||||||||||||||||||
| 3C x 25.00 | 196 / 0.400 | 0.780 | 1.20 | 2.00 | 36.5 x 15.70 | 80 | ||||||||||||||||||||||||||
| 3C x 35.00 | 276 / 0.400 | 0.554 | 1.20 | 2.00 | 40.5 x 17.20 | 100 | ||||||||||||||||||||||||||
| 3C x 50.00 | 396 / 0.400 | 0.386 | 1.40 | 2.20 | 46.5 x 19.30 | 130 | ||||||||||||||||||||||||||
SELECTION CHART OF CABLES
| SUBMERSIBLE PUMPSET CABLE SELECTION CHART FOR 415 V, 3 PHASE - 50Hz. | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | LENGTH IN METERS | ||||||||||||||||||||||||||||||
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | 300 | 350 | 400 | |||||||||||||
| 1.0/1.5 | 1.0 | 1.0 | 1.0 | 1.0 | |||||||||||||||||||||||||||
| 3.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4.0 | 4.0 | 4.0 | 6.0 | ||||||||||||
| 4.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 6.0 | ||||||||||||
| 5.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 4.0 | 4.0 | 6.0 | 6.0 | 6.0 | 10.0 | ||||||||||||
| 6.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | ||||||||||||
| 7.5S | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | 16.0 | ||||||||||||
| 7.5D | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | ||||||||||||
| 10.0 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | ||||||||||||
| 12.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | 16.0 | ||||||||||||
| 15.0 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 6.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | 10.0 | 16.0 | ||||||||||||
| 17.5 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | 16.0 | 16.0 | 16.0 | ||||||||||||
| 20.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 10.0 | 10.0 | 10.0 | 10.0 | 16.0 | 16.0 | 16.0 | 25.0 | ||||||||||||
| 25.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 10.0 | 10.0 | 10.0 | 16.0 | 16.0 | 16.0 | 16.0 | 25.0 | ||||||||||||
| 30.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 | 16.0 | 16.0 | 16.0 | 16.0 | 25.0 | ||||||||||||
| 40.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 16.0 | 16.0 | 16.0 | 25.0 | 25.0 | 25.0 | 25.0 | 35.0 | ||||||||||||
| 50.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 25.0 | 25.0 | 35.0 | 35.0 | 35.0 | 50.0 | ||||||||||||
