Application : These cables are used for wiring in machines, control panels, etc in dry and damp conditions especially under typical industrial environment.
Conductor : The conductors are drawn from bright electrolytic grade copper and bunched together as per class 5 of IS : 8130.
Insulation : Bunched conductors are insulated with specially developed RoHS PVC which has high Insulation and volume resistivity.
Sheathing : Best in class soft PVC is used for sheathing of the cable which ensures high fiexibility.
Marking : Sequential meter marking with generic marking “Bintex” at one meter interval.

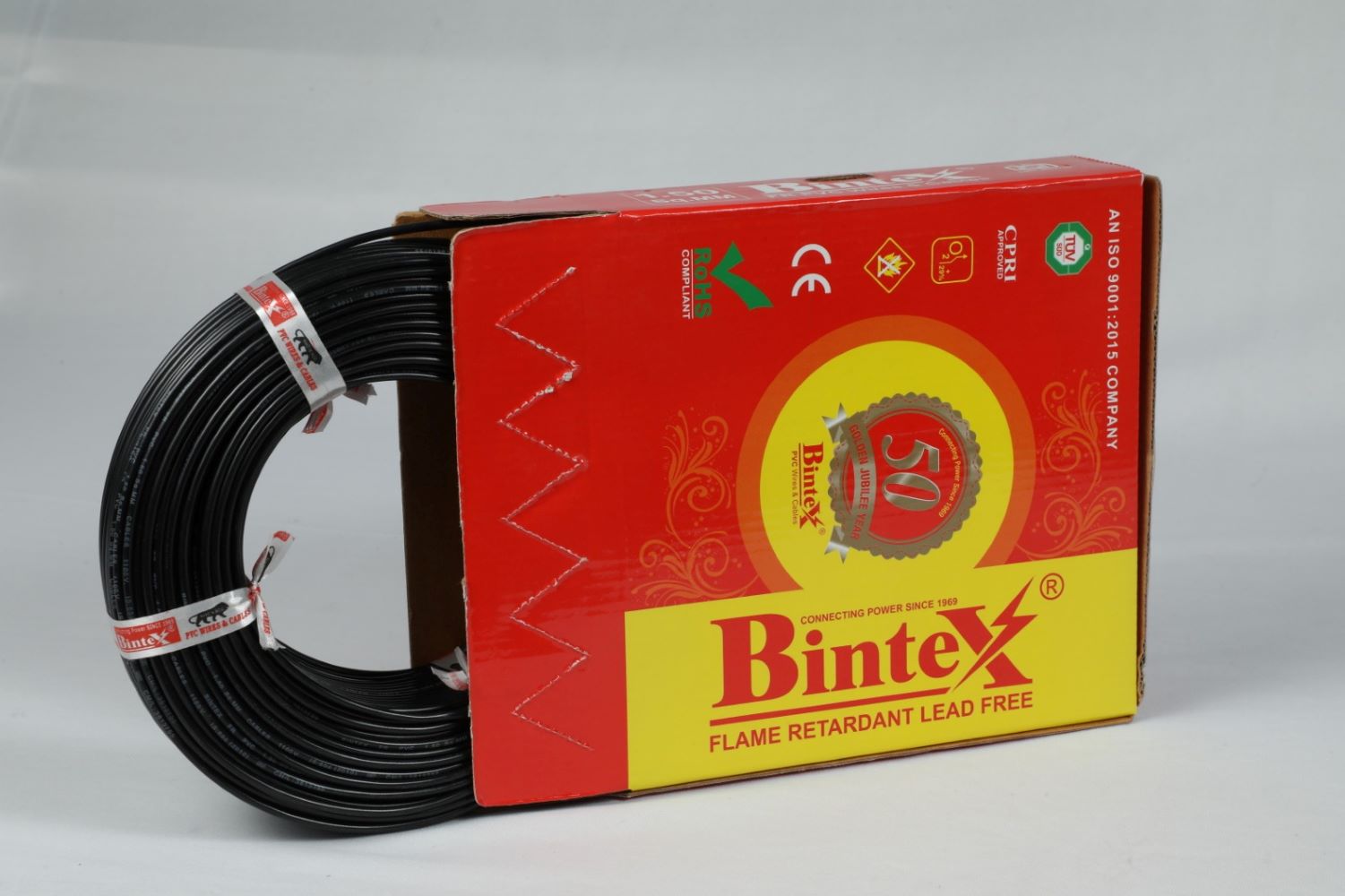

Packing : Available in standard packing of 100 mtr. Drum packing 500 mtr and above available on request.
.webp)
SIZE DIMENSIONS AND RATINGS
| SIZE | NO. OF STRANDS / NOMINAL DIA. OF CONDUCTOR |
NOMINAL INSULATION THICKNESS | NOMINAL THICKNESS OF SHEATH | APPROX. OVERALL DIAMETER | CURRENT RATING | VOLTAGE / AMP PER MTR. | MAX. D.C. CONDUCTOR RESISTANCE AT 20C |
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 CORE |
3 CORE |
4 CORE |
5 CORE |
2 CORE |
3 CORE |
4 CORE |
5 CORE |
DC OR SI.PH. AC | 3 PH. AC |
||||||||||||||||||||
| Sq. mm | Nos. / mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Amps | mv | mv | mv | |||||||||||||||
| 0.50 | 16/0.20 | 0.60 | 0.90 | 0.90 | 0.90 | 0.90 | 6.90 | 7.30 | 8.00 | 8.70 | 4.0 | 83.00 | 72.00 | 72.00 | |||||||||||||||
| 0.75 | 24/0.20 | 0.60 | 0.90 | 0.90 | 0.90 | 0.90 | 7.30 | 7.70 | 8.40 | 9.20 | 7.0 | 56.00 | 48.00 | 48.00 | |||||||||||||||
| 1.00 | 32/.0.20 | 0.60 | 0.90 | 0.90 | 0.90 | 1.00 | 7.60 | 8.10 | 8.80 | 9.60 | 11.0 | 43.00 | 37.00 | 37.00 | |||||||||||||||
| 1.50 | 30/0.25 | 0.60 | 0.90 | 0.90 | 1.00 | 1.00 | 8.90 | 9.40 | 10.40 | 11.40 | 14.0 | 31.00 | 26.00 | 26.00 | |||||||||||||||
| 2.50 | 50/0.25 | 0.70 | 1.00 | 1.00 | 1.00 | 1.00 | 10.30 | 10.90 | 12.00 | 13.20 | 19.0 | 18.00 | 16.00 | 16.00 | |||||||||||||||
| 4.00 | 56/0.30 | 0.80 | 1.00 | 1.00 | 1.00 | 1.10 | 11.60 | 12.40 | 13.60 | 15.30 | 26.0 | 11.00 | 9.60 | 9.60 | |||||||||||||||
| 6.00 | 84/0.30 | 0.80 | 1.10 | 1.20 | 1.20 | - | 13.00 | 13.80 | 15.50 | - | 33.0 | 7.30 | 6.00 | 6.00 | |||||||||||||||
| 10.00 | 141/0.30 | 1.00 | 1.30 | 1.40 | 1.40 | - | 16.50 | 17.70 | 19.50 | - | 45.0 | 4.40 | 3.50 | 3.50 | |||||||||||||||
| 16.00 | 266/0.30 | 1.00 | 1.40 | 1.40 | 1.40 | - | 19.40 | 20.60 | 23.00 | - | 60.0 | 2.80 | 2.20 | 2.20 | |||||||||||||||
| 25.00 | 196/0.40 | 1.20 | 1.40 | 1.50 | 1.60 | - | 23.80 | 25.60 | 28.50 | - | 75.0 | 0.20 | 1.40 | 1.40 | |||||||||||||||
| 35.00 | 276/0.40 | 1.20 | 1.60 | 1.60 | 1.70 | - | 27.20 | 29.30 | 32.70 | - | 95.0 | 0.20 | 1.00 | 1.00 | |||||||||||||||
SIZE AND DIMENSION CHART OF CONTROL FLEXIBLE CABLES
| NO. OF CORES | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | MAX. OVERALL DIA. OF CABLE | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | MAX. OVERALL DIA. OF CABLE | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | MAX. OVERALL DIA. OF CABLE | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | MAX. OVERALL DIA. OF CABLE | NOMINAL INSULATION THICKNESS | NOMINAL SHEATH THICKNESS | MAX. OVERALL DIA. OF CABLE | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||||||||||||
| 6 | 0.60 | 0.90 | 9.50 | 0.60 | 1.00 | 10.00 | 0.60 | 1.00 | 10.50 | 0.60 | 1.00 | 12.40 | 0.70 | 1.10 | 14.50 | |||||||||||||
| 7 | 0.60 | 0.90 | 9.50 | 0.60 | 1.00 | 10.00 | 0.60 | 1.00 | 10.50 | 0.60 | 1.00 | 12.40 | 0.70 | 1.10 | 14.50 | |||||||||||||
| 8 | 0.60 | 1.00 | 11.10 | 0.60 | 1.00 | 11.80 | 0.60 | 1.00 | 12.40 | 0.60 | 1.10 | 14.70 | 0.70 | 1.20 | 17.30 | |||||||||||||
| 9 | 0.60 | 1.00 | 11.80 | 0.60 | 1.10 | 12.40 | 0.60 | 1.10 | 13.10 | 0.60 | 1.10 | 15.60 | 0.70 | 1.30 | 18.30 | |||||||||||||
| 10 | 0.60 | 1.00 | 12.00 | 0.60 | 1.10 | 12.70 | 0.60 | 1.10 | 13.40 | 0.60 | 1.10 | 16.00 | 0.70 | 1.30 | 18.70 | |||||||||||||
| 11 | 0.60 | 1.00 | 12.00 | 0.60 | 1.10 | 12.70 | 0.60 | 1.10 | 13.40 | 0.60 | 1.10 | 16.00 | 0.70 | 1.30 | 18.70 | |||||||||||||
| 12 | 0.60 | 1.00 | 12.40 | 0.60 | 1.10 | 13.10 | 0.60 | 1.10 | 13.90 | 0.60 | 1.10 | 16.50 | 0.70 | 1.30 | 19.40 | |||||||||||||
| 13 | 0.60 | 1.00 | 13.10 | 0.60 | 1.10 | 13.80 | 0.60 | 1.10 | 14.60 | 0.60 | 1.20 | 17.40 | 0.70 | 1.30 | 20.50 | |||||||||||||
| 14 | 0.60 | 1.10 | 13.10 | 0.60 | 1.10 | 13.80 | 0.60 | 1.10 | 14.60 | 0.60 | 1.20 | 17.40 | 0.70 | 1.30 | 20.50 | |||||||||||||
| 15 | 0.60 | 1.10 | 13.50 | 0.60 | 1.20 | 14.30 | 0.60 | 1.20 | 15.10 | 0.60 | 1.20 | 18.10 | 0.70 | 1.40 | 21.30 | |||||||||||||
| 16 | 0.60 | 1.10 | 13.80 | 0.60 | 1.20 | 14.60 | 0.60 | 1.20 | 15.40 | 0.60 | 1.20 | 18.40 | 0.70 | 1.40 | 21.70 | |||||||||||||
| 17 | 0.60 | 1.10 | 14.60 | 0.60 | 1.20 | 15.40 | 0.60 | 1.20 | 16.30 | 0.60 | 1.30 | 19.50 | 0.70 | 1.40 | 23.00 | |||||||||||||
| 18 | 0.60 | 1.10 | 14.60 | 0.60 | 1.20 | 15.40 | 0.60 | 1.30 | 16.30 | 0.60 | 1.30 | 19.50 | 0.70 | 1.40 | 23.30 | |||||||||||||
| 19 | 0.60 | 1.10 | 14.60 | 0.60 | 1.20 | 15.40 | 0.60 | 1.30 | 16.30 | 0.60 | 1.30 | 19.50 | 0.70 | 1.40 | 23.80 | |||||||||||||
| 20 | 0.60 | 1.20 | 15.40 | 0.60 | 1.30 | 16.30 | 0.60 | 1.40 | 17.30 | 0.60 | 1.40 | 20.70 | 0.70 | 1.50 | 24.40 | |||||||||||||
| 21 | 0.60 | 1.20 | 15.40 | 0.60 | 1.30 | 16.30 | 0.60 | 1.40 | 17.30 | 0.60 | 1.40 | 20.70 | 0.70 | 1.50 | 25.00 | |||||||||||||
| 22 | 0.60 | 1.20 | 16.30 | 0.60 | 1.30 | 17.30 | 0.60 | 1.40 | 18.20 | 0.60 | 1.40 | 21.90 | 0.70 | 1.50 | 25.80 | |||||||||||||
| 23 | 0.60 | 1.20 | 16.30 | 0.60 | 1.30 | 17.30 | 0.60 | 1.40 | 18.20 | 0.60 | 1.40 | 21.90 | 0.70 | 1.50 | 26.30 | |||||||||||||
| 24 | 0.60 | 1.20 | 17.10 | 0.60 | 1.30 | 18.20 | 0.60 | 1.40 | 19.20 | 0.60 | 1.40 | 23.00 | 0.70 | 1.50 | 27.20 | |||||||||||||
| 25 | 0.60 | 1.20 | 17.10 | 0.60 | 1.30 | 19.00 | 0.60 | 1.40 | 19.20 | 0.60 | 1.40 | 23.00 | 0.70 | 1.50 | 27.90 | |||||||||||||
